Configuration Management is a systems engineering process for establishing and maintaining consistency of a product's performance, functional and physical attributes with its requirements, design and operational information throughout its life.

http://en.wikipedia.org/wiki/Configuration_management

Change Management

http://en.wikipedia.org/wiki/Configuration_management

Operating System
Configuration Management

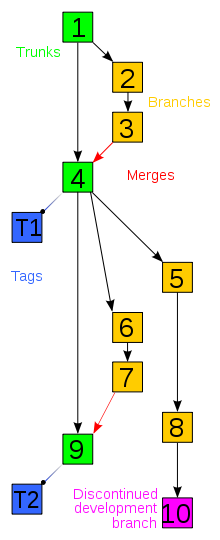

Revision control

Revision control

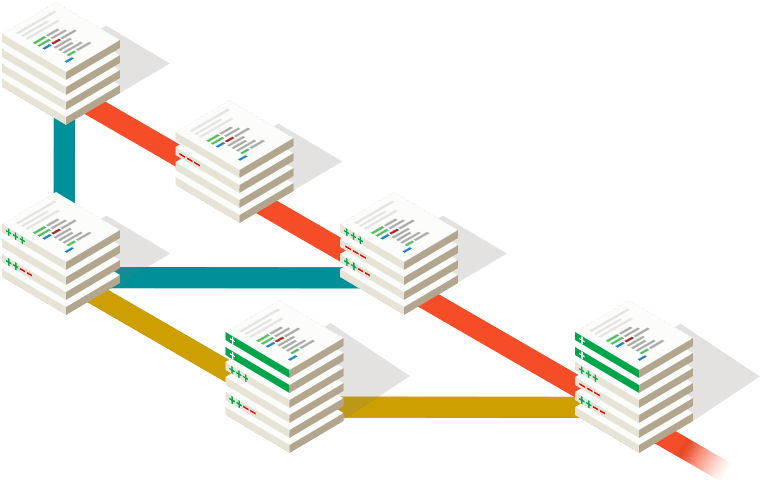

Git

Git is a distribuited revision control system with an emphasis on speed, data integrity and support for distribuited, non-linear workflows.

Git was initially designed and developed by Linus Torvalds for Linux kernel development in 2005, and has since become the most widely adopted version control system for software development.

http://en.wikipedia.org/wiki/Git_%28software%29

Install and Learning Git

http://git-scm.com/

Your first git steps

EX: create your first git repository

$ mkdir my-new-project
$ cd my-new-project
$ touch README.md

$ git init
Initialized empty Git repository in /home/rpl/my-new-project/.git/

EX: check the repository status

$ git status
On branch master

Initial commit

Untracked files:
  (use "git add <file>..." to include in what will be committed)

        README.md

nothing added to commit but untracked files present (use "git add" to track)

EX: prepare your first commit

$ git add README.md

$ git status
On branch master

Initial commit

Changes to be committed:
  (use "git rm --cached <file>..." to unstage)

        new file:   README.md

EX: create your first commit

$ git commit -m "added README.md"
[master (root-commit) 7101a13] added README.md
 1 file changed, 0 insertions(+), 0 deletions(-)
  create mode 100644 README.md

$ git status
On branch master
nothing to commit, working directory clean

EX: take a look to the history

$ git log

commit 7101a13530a691be291b8fde44b8499dc25bd471
Author: Luca Greco <luca.greco@alcacoop.it>
Date:   Wed Feb 05 17:39:30 2015 +0100

    added README.md

EX: create a feature/fix branch (1/3)

$ git checkout -b feature/new-awesome-stuff
Switched to a new branch 'feature/new-awesome-stuff'

$ git branch -a
* feature/new-awesome-stuff
  master

EX: create a feature/fix branch (2/3)

$ touch app.js
$ echo "- new awesome stuff" > README.md
$ git add app.js
$ git status
On branch feature/new-awesome-stuff
Changes to be committed:
  (use "git reset HEAD <file>..." to unstage)

        new file:   app.js

Changes not staged for commit:
  (use "git add <file>..." to update what will be committed)
    (use "git checkout -- <file>..." to discard changes in working directory)

        modified:   README.md

EX: create a feature/fix branch (3/3)

$ git commit -a -m "Add new awesome stuff"
[feature/new-awesome-stuff cbd6775] Add new awesome stuff
 2 files changed, 1 insertion(+)
  create mode 100644 app.js

$ git log --graph --oneline --decorate

* cbd6775 (HEAD, feature/new-awesome-stuff) Add new awesome stuff
* 7101a13 (master) added README.md

EX: diverged branches, merge and conflicts resolution (1/7)

$ git checkout master
Switched to branch 'master'

$ echo "- this will be a conflict" > README.md
$ git commit -a -m "updated README.md"
[master d854a05] updated README.md
 1 file changed, 1 insertion(+)

EX: diverged branches, merge and conflicts resolution (2/7)

$ git log --graph --oneline --decorate --all

* d854a05 (HEAD, master) updated README.md
| * cbd6775 (feature/new-awesome-stuff) Add new awesome stuff
|/
* 7101a13 added README.md

EX: diverged branches merge and conflicts resolution (3/7)

$ git merge feature/new-awesome-stuff
Auto-merging README.md
CONFLICT (content): Merge conflict in README.md
Automatic merge failed; fix conflicts and then commit the result.

EX: diverged branches merge and conflicts resolution (4/7)

$ git status
On branch master
You have unmerged paths.
  (fix conflicts and run "git commit")

Changes to be committed:

        new file:   app.js

Unmerged paths:
  (use "git add <file>..." to mark resolution)

        both modified:      README.md

EX: diverged branches merge and conflicts resolution (5/7)

$ cat README.md
<<<<<<< HEAD
- this will be a conflict
=======
- new awesome stuff
>>>>>>> feature/new-awesome-stuff

$ git mergetool
Merging:
README.md

Normal merge conflict for 'README.md':
  {local}: modified file
  {remote}: modified file
Hit return to start merge resolution tool (meld):

EX: diverged branches merge and conflicts resolution (6/7)

$ git status
On branch master
All conflicts fixed but you are still merging.
  (use "git commit" to conclude merge)

Changes to be committed:

        modified:   README.md
                new file:   app.js

Untracked files:
  (use "git add <file>..." to include in what will be committed)

        README.md.orig

EX: diverged branches merge and conflicts resolution (7/7)

$ git commit -m "merged feature/new-awesome-stuff"
[master b364f8f] merged feature/new-awesome-stuff

$ git log --graph --oneline --decorate

*   b364f8f (HEAD, master) merged feature/new-awesome-stuff
|\
| * cbd6775 (feature/new-awesome-stuff) Add new awesome stuff
* | d854a05 updated README.md
|/
* 7101a13 added README.md

Ansible is the simplest way to automate IT.

http://www.ansible.com

Ansible

Rather than writing custom code to automate your systems, your team writes simple task descriptions that even the newest team member can understand on first read.

- name: provision php packages
  apt: name={{item}} update_cache=yes cache_valid_time=3600
  with_items:
    - lsof
    - php5-cli
    - php5-mysql

- name: provision apache packages
  apt: name={{item}} update_cache=yes cache_valid_time=3600
  with_items:
    - apache2
    - libapache2-mod-php5

Agentless

Ansible uses SSH by default instead of requiring agents everywhere

• avoid extra open ports, improve security
• eliminate "managing the management"
• system resource utilization is dramatically improved

Complete

Ansible automates:

• app deployment
• configuration management
• workflow orchestration and even cloud provisioning

all from one system (e.g. your laptop).

Managed nodes requirements

For the more advanced features:

• On the managed nodes, you only need Python 2.4 or later
• If you are running Python < 2.5 on the remotes, you will also need python-simplejson

Install Ansible

sudo apt-get update && \
  sudo apt-get install python-pip -y && \
  sudo pip install --system ansible

Detailed info here

Server inventory? A simple text file.

[webservers]
www1.example.com
www2.example.com

[dbservers]
db0.example.com
db1.example.com

First commands

• prepare an inventory file
• use SSH keys for authentication.

$ ssh-agent bash
$ ssh-add ~/.ssh/id_rsa

• ping all your nodes (using your current username)

$ ansible all -m ping

First commands & specify the user or use sudo

# run as bruce
$ ansible all -m ping -u bruce

# run as bruce, sudoing to root
$ ansible all -m ping -u bruce --sudo

# run as bruce, sudoing to batman
$ ansible all -m ping -u bruce --sudo --sudo-user batman

# run a live command on all of your nodes
$ ansible all -a "/bin/echo hello"

Run commands over a group of hosts

$ ansible webservers -m service -a "name=httpd state=restarted"

groups are how we decide which hosts to manage

EX: change a config file and restart a service over a set of unique servers

$ ansible all -m fetch -a "src=/etc/ntp.conf dest=tmp/"

edit files in tmp/*/etc/ntp.conf and then

$ ansible all -m copy -a \
  "src=tmp/{{inventory_hostname}}/etc/ntp.conf dest=/etc/ntp.conf backup=yes"

$ ansible all -m service -a "name=ntp status=restarted"

Power of the playbooks

Playbooks: Repeatable & Reliable

Playbooks: a first and simple example

- hosts: webservers
  vars:
    http_port: 80
    max_clients: 200
  remote_user: root
  tasks:
    - name: ensure apache is at the latest version
      apt: pkg=apache2 state=latest
    - name: write the apache config file
      template: src=/srv/httpd.j2 dest=/etc/apache2/httpd.conf
      notify:
        - restart apache
    - name: ensure apache is running
      service: name=httpd state=started
  handlers:
    - name: restart apache
      service: name=httpd state=restarted

Running a playbook

$ ansible-playbook playbook.yml

Running a playbook with specific inventory

$ ansible-playbook -i routers-inventory playbook.yml

List playbook tasks

$ ansible-playbook playbook.yml --list-tasks

$ ansible-playbook -i inventory platform-lamp.yml --list-tasks

playbook: platform-lamp.yml

  play #1 (PROVISION - platform lamp):
    provision php packages
    provision apache packages
    provision mysql-client
    provision mysql-server

List playbook selected hosts

$ ansible-playbook playbook.yml --list-hosts

$ ansible-playbook -i inventory platform-lamp.yml --list-hosts

playbook: platform-lamp.yml

  play #1 (PROVISION - platform lamp): host count=1
    localhost

Run step by step

$ ansible-playbook playbook.yml --step

$ ansible-playbook -i inventory playbook.yml --step

PLAY [PROVISION - platform lamp] *****************************************

GATHERING FACTS **********************************************************
ok: [localhost]
Perform task: platform-lamp | provision php packages (y/n/c): y

Playbook sections

An ansible Playbook is composed of 4 sections:

• target section: on which group/server the playbook will be run
• variables section: which parameters will be used during the run
• tasks section: which tasks will be run on the targets
• handlers section: which handlers will be available during the run

Playbooks: target section

First of all we have to define in the playbook which target server or group we will run on:

- hosts: webservers

In the same section we can use the following options to customize the behaviors:

• gather_facts: doesn't run the setup module if it is no or false
• sudo: needs to be yes or true to ask ansible to use sudo on the managed node
• user: optional user to be user to connect on the managed node
• sudo_user: optional user to sudo to during the run
• connection: optional connection mode to reach the managed node (e.g. ssh or local)

Playbooks: vars section

Then we usually define a number of variables to be re-used in the tasks during the run:

- hosts: webservers
  vars:
    ntpd_enabled: yes
    apache_version: 2.6
    motd_message: 'WARNING: service reserved to IT employees only'

Playbooks: vars section

or we can load even more data from other YAML or JSON files:

- hosts: webservers
  vars_files:
  - conf/common.yaml
  - conf/webservers.yaml

Playbooks: vars section

and sometimes we need to ask for a variable value during the run:

- hosts: webservers
  var_prompt:
  - name: "https_passphrase"
    prompt: "HTTPS Passphrase"
    private: yes

Playbooks: variable substitutions

we can use our own variables (and variables gathered by the setup module), everywhere in the playbooks and templates using the following syntaxes:

{{ variables_name }}

or

${ variables_name }

or

$variables_name

Playbooks: tasks section

The tasks section will include the sequence of tasks we want to run on the target:

- hosts: webservers
  ...
  tasks:

  - name: install ntpd
    apt: name=ntpd state=installed

  - name: configure ntpd
    copy: src=files/ntpd.conf dest=/etc/ntpd.conf

Playbooks: tasks section

name is just a documentation string, which will be then followed by the ansible module we want to run and its parameters.

The module parameters can be written as nested YAML attributes if it helps the readability:

  - apt:
      name: ntpd
      state: installed

Playbooks: handlers section

The handlers section use the same syntax of the tasks section, but they are not run unless called by tasks:

- hosts: webservers
  ...
  tasks:
  - name: update the ntpd config
    copy: src=files/ntpd.conf dest=/etc/ntpd.conf
    notify:
    - restart ntpd

  handlers:
  - name: restart ntpd
    service: name=ntpd state=restarted

Vars & Templates

Ansible Playbooks use Vars to parametrize tasks and templates.

Vars can be specified in various places and syntaxes:

• as command line parameters (inline or as file path)
• embedded in the inventory lists
• in a playbook
• as files in group_vars and host_vars directories
• as files in a role defaults

Vars on command lines

$ ansible-playbook playbook.yml --extra-vars "db=N mail=Y" \
                                --extra-vars @filepath.yml

Parametrized include

You can also pass variables into includes. We call this a "parameterized include".

tasks:
  - {include: wordpress.yml, user: timmy,
     ssh_keys: [ 'keys/one.txt', 'keys/two.txt' ] }

Conditional include

- include: gpg-keys.yml
  when: sysadmins.gpg_pub_keys

Facts

Facts are auto-collected info about the connected system (accessible as vars):

$ ansible -i inventory all -m setup

wpapp.ci.local | success >> {
    "ansible_facts": {
        "ansible_all_ipv4_addresses": [
            "172.111.15.125"
        ],
        "ansible_all_ipv6_addresses": [
            "fe80::216:1eff:fe13:8b22"
        ],
        "ansible_architecture": "x86_64",
        "ansible_bios_date": "12/27/2007",
        "ansible_bios_version": "1.1.0",
        "ansible_cmdline": {
            "ro": true,
            "root": "/dev/md126"
        },
    ...

Templates

Ansible use Jinja2 Templates

Templates Module in Tasks

- template:
    src: apache-webapp.conf.j2
    dest: /etc/apache2/sites-available/mywebapp.conf
    owner: www-data
    group: www-data
    mode: 0600

Jinja2 Templates Files

...
 <Directory /srv/mywebapp>
    Options FollowSymLinks
    ### NOTE: Limit needed to harden wordpress uploads dir using .htaccess
    AllowOverride FileInfo Options Limit
    Order allow,deny
    Allow from all
    Require all granted

    {% if provision_env == "production" %}
    AuthUserFile  /var/lib/mywebapp/mywebapp.htpasswd
    AuthName MYWEBAPP
    AuthType Basic
    require valid-user
    {% endif %}
  </Directory>
...

Roles

roles are ways of automatically loading certain vars_files, tasks, and handlers based on a known file structure

grouping content by roles also allows easy sharing of roles with other users.

Roles

Roles are just automation around "include" directives as described above, and really don't contain much additional magic beyond some improvements to search path handling for referenced files.

Project structure example

site.yml                  # master playbook
webservers.yml            # playbook for webserver tier
dbservers.yml             # playbook for dbserver tier

roles/
  common/               # this hierarchy represents a "role"
    tasks/            #
      main.yml      #  <-- tasks file can include smaller files if warranted
    handlers/         #
      main.yml      #  <-- handlers file
    templates/        #  <-- files for use with the template resource
      ntp.conf.j2   #  <------- templates end in .j2
    files/            #
      bar.txt       #  <-- files for use with the copy resource
      foo.sh        #  <-- script files for use with the script resource
    vars/             #
      main.yml      #  <-- variables associated with this role
    defaults/         #
      main.yml      #  <-- default lower priority variables for this role
    meta/             #
      main.yml      #  <-- role dependencies

  hardening/
  monitoring/

host_vars/
group_vars/
inventories/
  production
  staging

Playbook example

- hosts: webservers
  roles:
     - common
     - webservers

Rules for roles (1/2)

This designates the following behaviors, for each role "x":

• If roles/x/tasks/main.yml exists, tasks listed therein will be added to the play
• If roles/x/handlers/main.yml exists, handlers listed therein will be added to the play
• If roles/x/vars/main.yml exists, variables listed therein will be added to the play
• If roles/x/meta/main.yml exists, any role dependencies listed therein will be added to the list of roles (1.3 and later)

Rules for roles (2/2)

• copy and script tasks can reference files in roles/x/files/ without having to path them relatively or absolutely
• template tasks can reference files in roles/x/templates/ without having to path them relatively or absolutely
• include tasks can reference files in roles/x/tasks/ without having to path them relatively or absolutely

More About

Ansible Modules

Modules: apt

# Update repositories cache and install "foo" package
- apt: name=foo update_cache=yes

# Remove "foo" package
- apt: name=foo state=absent

# Install the package "foo"
- apt: name=foo state=present

# Install the version '1.00' of package "foo"
- apt: name=foo=1.00 state=present

Ansible Module Docs

$ ansible-doc apt

> APT

  Manages `apt' packages (such as for Debian/Ubuntu).

Options (= is mandatory):

- cache_valid_time
        If `update_cache' is specified and the last run is less or
        equal than `cache_valid_time' seconds ago, the `update_cache'
        gets skipped.

- deb
        Path to a local .deb package file to install.

- default_release
        Corresponds to the `-t' option for `apt' and sets pin
        priorities

• From Web: Module Index and Docs
• From CLI: ansible-doc apt

Custom Ansible Modules

• Developing Modules

Fixing Heartbleed with Ansible

• http://www.ansible.com/blog/fixing-heartbleed-with-ansible
• https://github.com/jdauphant/patch-openssl-CVE-2014-0160/blob/master/patch-openssl-CVE-2014-0160.yml

Docker Compose

Docker Compose (previously named fig) is a fast and simple orchestration tool, which helps to manage a group of containers as a whole.

It's especially useful as minimal orchestration tool during development and testing.

https://docs.docker.com/compose/

docker-compose.yml

As an example is pretty common for a project which use docker to contain the app we're developing, to have a Dockerfile (used to build the app server) and a docker-compose.yml file which describe the entire architecture:

myapp:
  build: ./
  ports:
    - "8080:8080"
  volumes:
    - ./src:/srv/app
  environment:
    - APP_PORT: 8080
    - APP_ENV: development
    - APP_DB_HOST: myappdb
  links:
    - db:myappdb

db:
  image: "postgresql:9.4"

docker-compose commands

• docker-compose up: run all the containers defined in the YAML config
• docker-compose ps: show a summary of the containers managed by docker-compose based on the YAML config in the current dir
• docker-compose logs: show the docker logs from the defined containers
• docker-compose run: exec a command in a new container (as defined by the YAML config)
• docker-compose rm: remove all the containers created by docker-compose up

Docker & Ansible

When a provisioning is too complex to be managed directly in a Dockerfile using the docker building commands, we can switch to use Docker and Ansible together:

FROM ansible/ubuntu14.04-ansible:stable

MAINTAINER Luca Greco <luca.greco@alcacoop.it>

# import provisioning assets
ADD ansible-playbook /etc/ansible/playbooks/devbox-base

# run provisioning
RUN apt-get update && \
  ansible-playbook /etc/ansible/playbooks/devbox-base/site.yml -c local && \
  ansible-playbook /etc/ansible/playbooks/devbox-base/cleanup.yml -c local

# base cli environment vars
ENV TERM "xterm-256color"
ENV LC_ALL "C"
ENV SHELL "/bin/bash"

CMD ["/bin/bash", "-l"]
